MAD BMW B58 2016+ F Chassis M140 M240 340 440 Charge Pipe

MAD BMW B58 F Chassis Charge Pipe

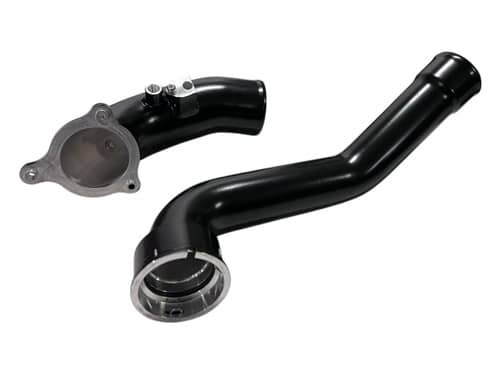

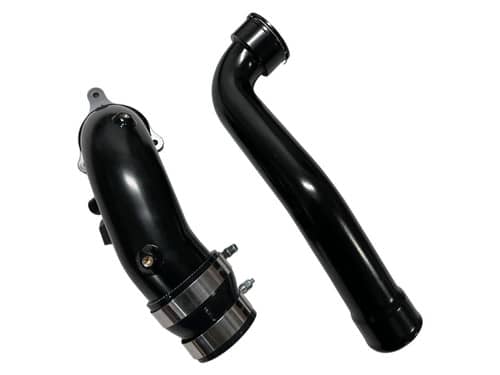

Upgrade the factory charge pipe on your BMW B58 with the MAD BMW F Chassis B58 Charge Pipe, a direct-fit replacement designed to improve durability, airflow, and throttle response on stock and tuned B58-powered BMWs.

The factory plastic charge pipe can become a weak point as boost and performance demands increase. The MAD B58 Charge Pipe replaces the OEM plastic piping with larger-diameter, high-flow tubing designed to provide a stronger and more reliable connection between the turbocharger system and throttle body.

Why Upgrade Your BMW B58 Charge Pipe?

The MAD B58 Charge Pipe features smooth, consistent tubing and a larger diameter to reduce airflow restriction through the charge system. A CNC-machined throttle body connection provides precise fitment and a secure seal, while the upgraded construction eliminates the factory plastic charge pipe from the system.

For modified B58 builds, an integrated water/methanol injection bung provides additional flexibility without requiring modification of the charge pipe.

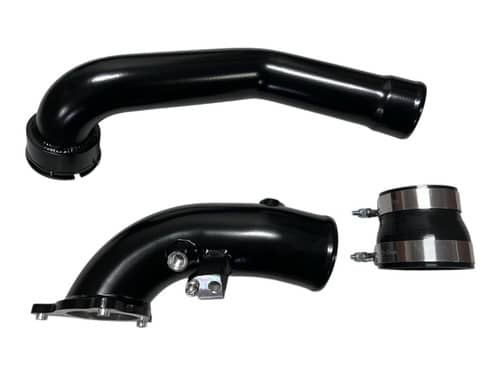

The kit includes 3-ply silicone couplers, stainless-steel clamps, and the necessary installation hardware for a direct OEM-style replacement.

Finished in black, the MAD charge pipe maintains a clean, understated appearance in the engine bay.

Key Features

• Direct replacement for the factory BMW B58 charge pipe
• Larger-diameter piping for increased airflow
• Designed to improve throttle response and reduce throttle lag
• More durable alternative to the factory plastic charge pipe
• CNC-machined throttle body connection for precise fitment and sealing
• Integrated water/methanol injection bung
• High-quality 3-ply silicone couplers
• Stainless-steel clamps
• Black OEM-style finish
• Installation hardware included
• Suitable for stock and tuned B58 applications

B58 Charge Pipe Dimensions

Throttle Body Side

Flange Inside Diameter (ID): 2.70 in / 68.6 mm

Pipe Outside Diameter (OD): 3.00 in / 76.2 mm

Turbo Side

Inlet Flange Inside Diameter (ID): 2.56 in / 65.0 mm

Pipe Outside Diameter (OD): 2.25 in / 57.2 mm

BMW B58 Fitment

The MAD B58 Charge Pipe is compatible with select B58-powered BMW models, including:

BMW 1 Series
2015–2019 F20/F21 LCI — M140i

BMW 2 Series
2015–2021 F22/F23, including LCI — M240i

BMW 3 Series
2014–2020 F30/F31/F34 LCI — 340i

BMW 4 Series
2015–2021 F32/F33/F36, including LCI — 440i

BMW 5 Series
2015–2019 G30/G31/G38 — 540i and 540i xDrive

BMW 6 Series
2016–2019 G32 GT — 640i GT

BMW 7 Series
2014–2019 G11/G12 — 740i

BMW X3
2016–2019 G01 — X3 M40i

BMW X4
2017–2019 G02 — X4 M40i

Always verify your vehicle’s model, chassis, engine, and production date before ordering.

Frequently Asked Questions

What does a charge pipe do on a BMW B58?

The charge pipe carries pressurized air through the turbocharged intake system toward the throttle body. An upgraded charge pipe replaces the factory plastic component with a more durable, higher-flow alternative.

Why upgrade the factory B58 charge pipe?

An upgraded B58 charge pipe provides stronger construction than the factory plastic piping and is particularly useful on vehicles running increased boost or other performance modifications. The larger, smoother piping can also improve airflow through the charge system.

Does the MAD B58 Charge Pipe fit the BMW M240i, 340i, and 440i?

Yes. This charge pipe is designed for compatible B58-powered BMW applications including the F22/F23 M240i, F30 340i, and F32/F33/F36 440i, along with additional B58 models listed in the fitment section.

Does this charge pipe work on tuned B58 engines?

Yes. The MAD B58 Charge Pipe is suitable for both stock and modified B58 applications and provides a more durable charge-pipe solution for vehicles running increased performance demands.

Does the MAD B58 Charge Pipe support water/methanol injection?

Yes. The charge pipe includes an integrated water/methanol injection bung, allowing compatible injection hardware to be installed without modifying the pipe.

What is included with the MAD B58 Charge Pipe?

The kit includes the charge pipe, 3-ply silicone couplers, stainless-steel clamps, and the necessary installation hardware.
