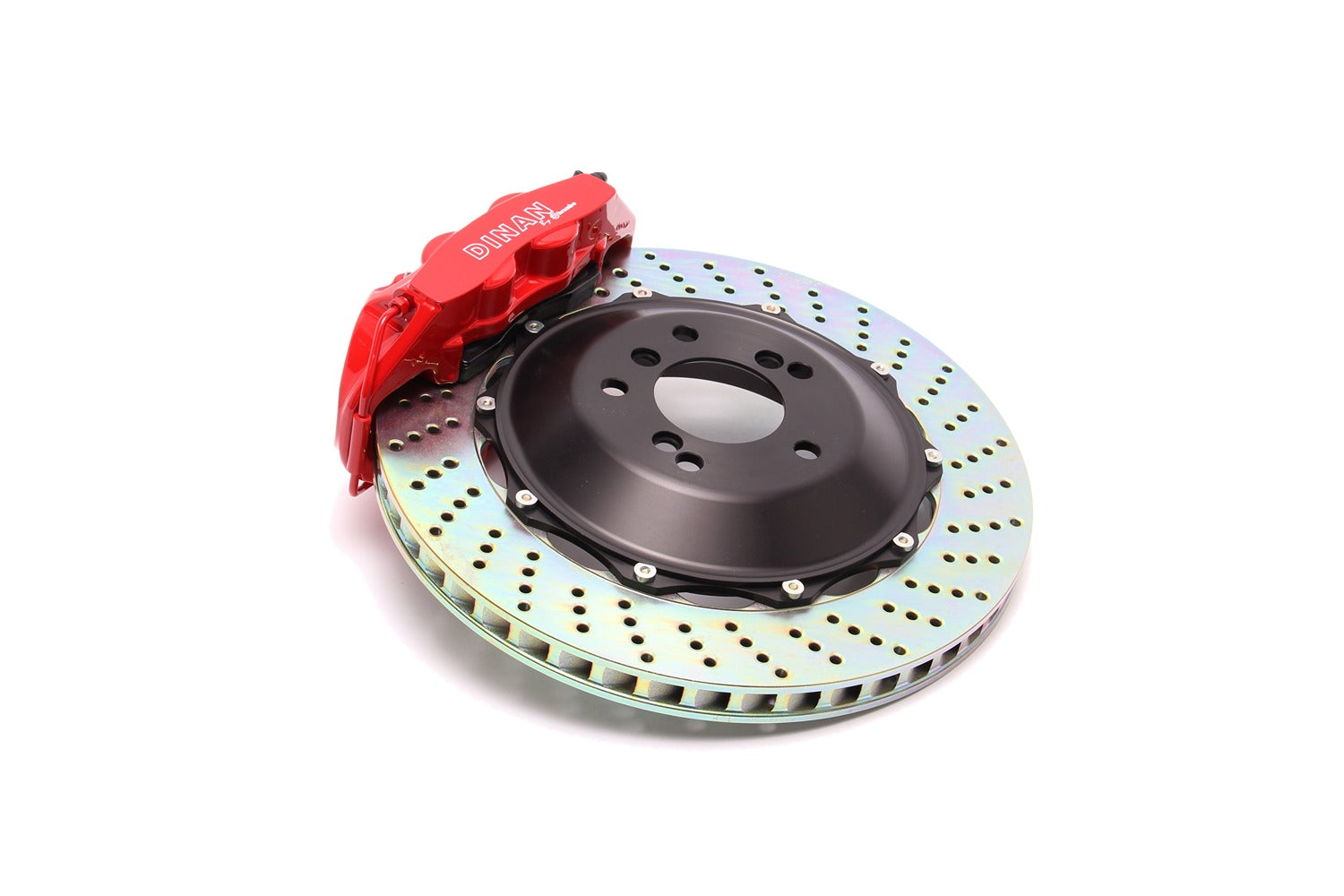

Dinan by Brembo Rear Brake Set - 2009-2015 BMW 7-Series
Dinan by Brembo Rear Brake Set - 2009-2015 BMW 7-Series
Couldn't load pickup availability
The Dinan by Brembo brake conversion offers the ultimate in stopping power for the most demanding driving enthusiast. Extensive testing on the street and at the track has enabled us to develop custom systems that have been tuned for optimum performance while avoiding the foibles of typical "big brake kits," such as unbalanced proportioning, poor pedal feel and unacceptable noise levels, just to name a few. The brake calipers are available in either red or black and you have a choice of slotted or drilled rotors as well (slotted rotors recommended).
In most cases the large rotors and calipers will require the use of aftermarket wheels for adequate brake clearance. Be sure to check with the manufacturer or distributor of the wheels you are considering in order to verify that they offer the necessary clearance citing the Brembo ''Gran Turismo'' brakes as a reference.
Brakes are available with either slotted or drilled rotors and finished in either black or red. Custom colors may be an additional cost.
Features:

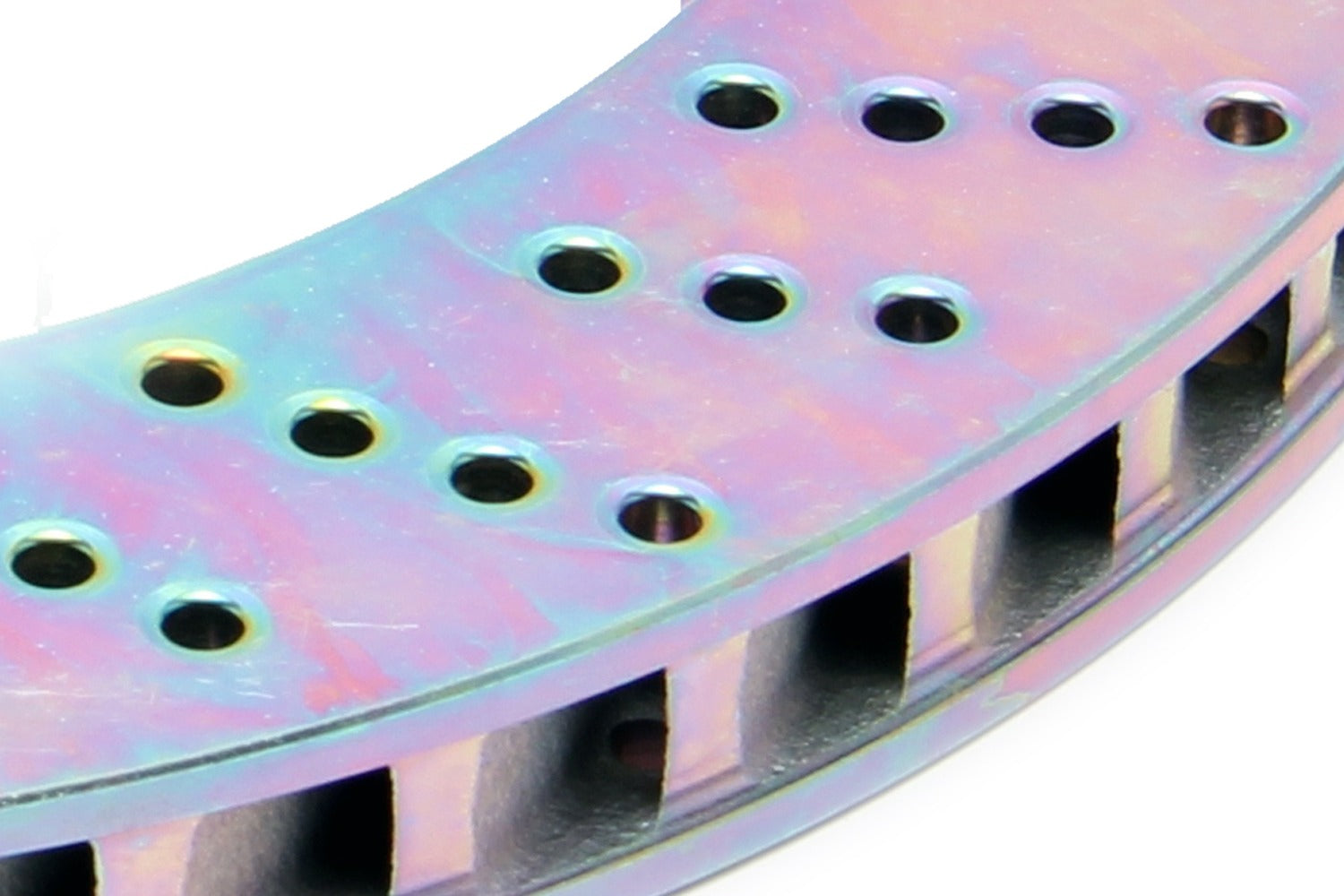

- 380mm Drilled 2-piece Rear Rotor (vs. 370mm stock)
- Dinan-spec brake pads with wear sensor cutout

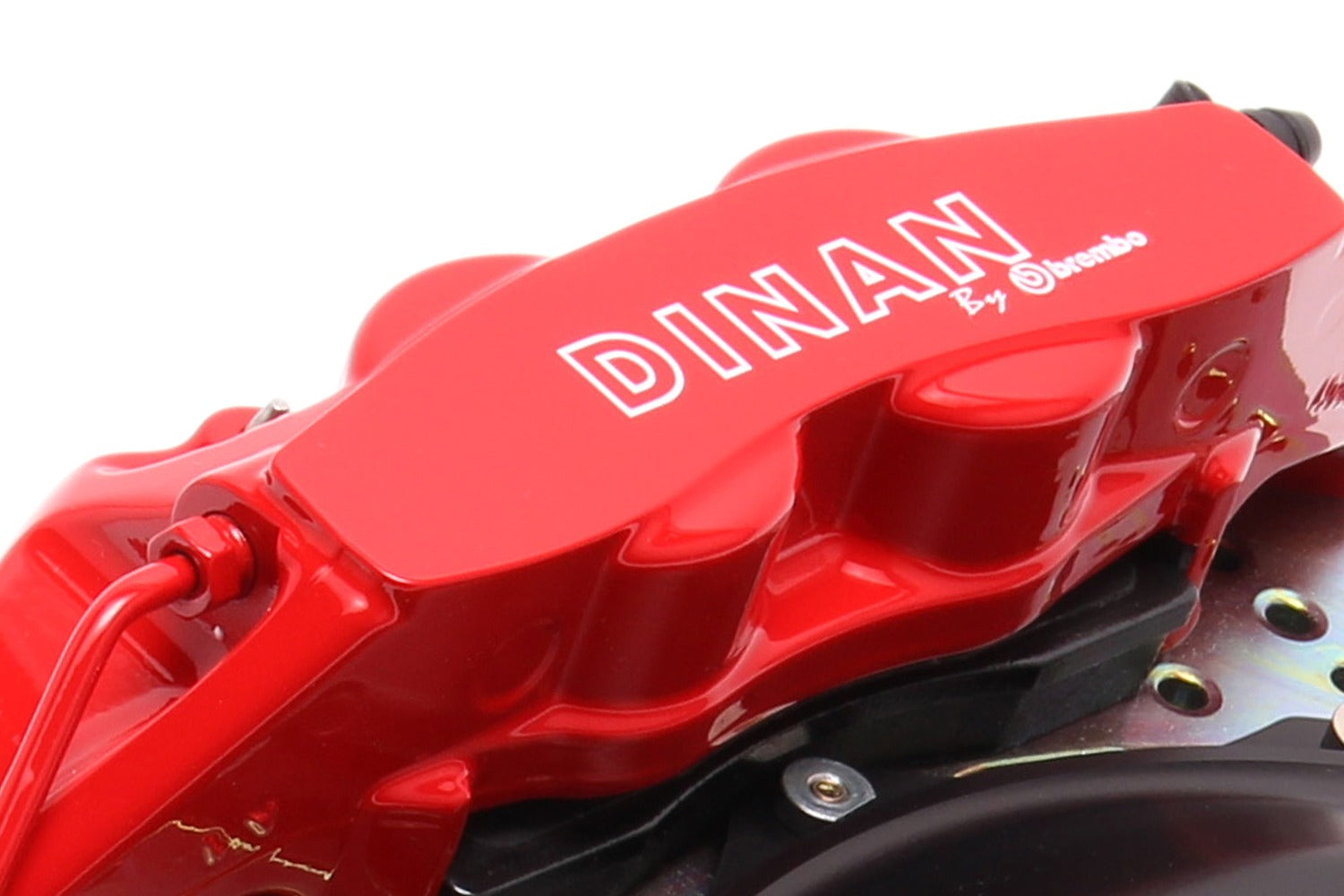

- 4-piston aluminum calipers
- Dinan approved front/rear brake balance
- Painted calipers with white "DINAN by brembo" lettering
- Includes mounting brackets & assembly hardware
- Includes DOT/TUV approved Goodridge stainless steel brake lines
Specifications:
| Brand | Dinan |
|---|---|
| Caliper Color | Red |
| Category | Brake |
| Dinan Point Value | 3 |
| Disc Style | Drilled |
| Emission Code | 5 |
| Height | 11 |
| Labor Time (Hours) | 4.1 |
| Length | 33 |
| Part Type | Disc Brake Pad Set |
| Product Type | Brake Kit |
| Sub Category | Disc Pads and Brake Shoes |
| Vehicle Application | BMW 7-Series F01/02 |
| Weight | 75 |
| Width | 17 |
| UPC | 813725027678 |
| Part Number | D290-0013-RD |
Emissions:
This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
Tech Resources:
Instructions for Part# D290-0013-RD
