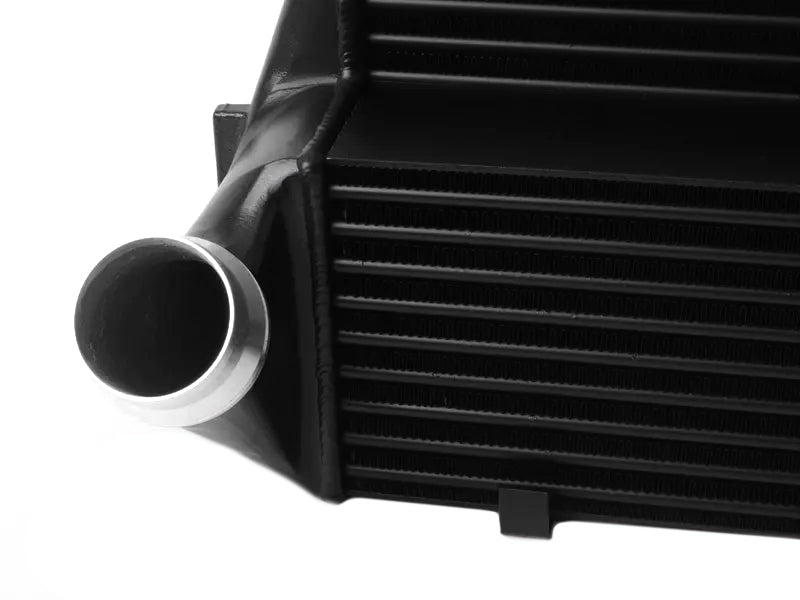

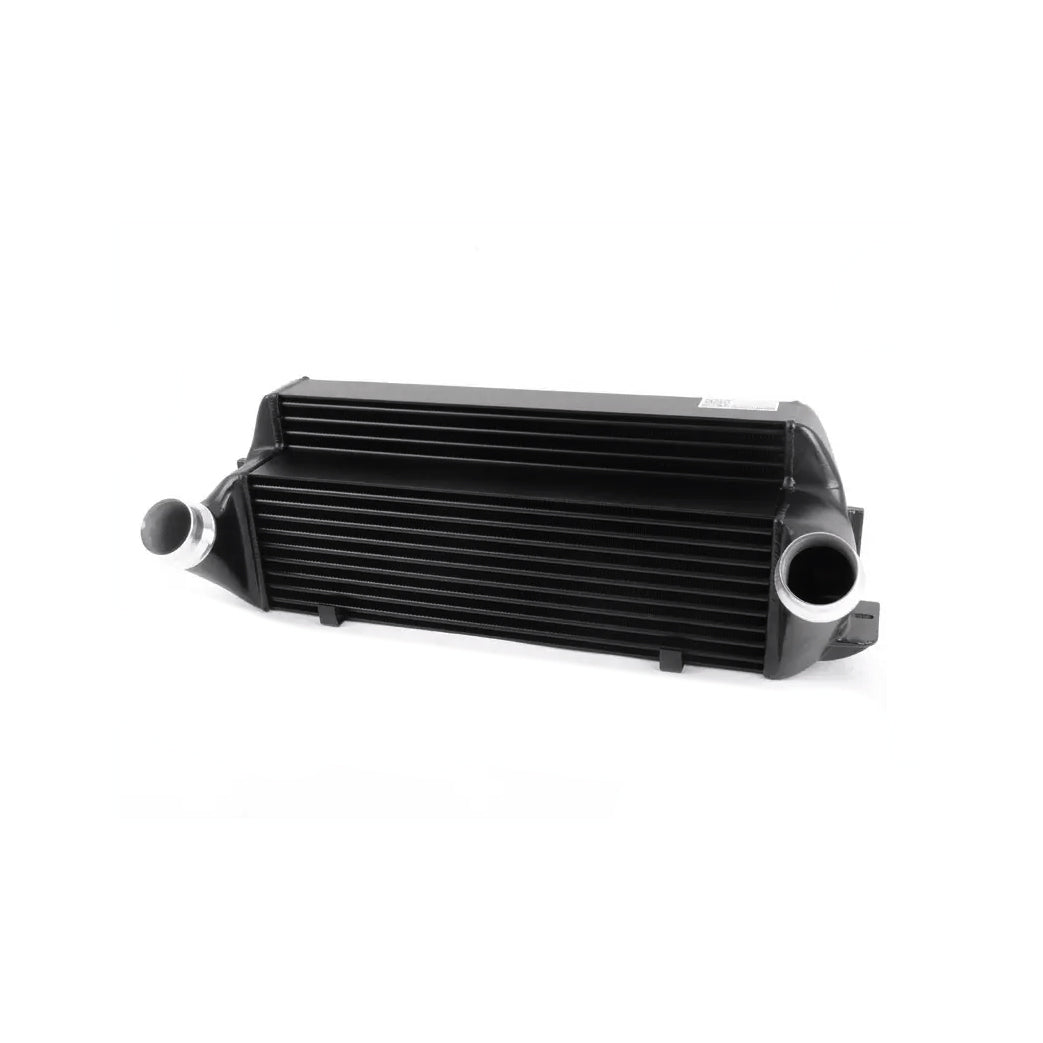

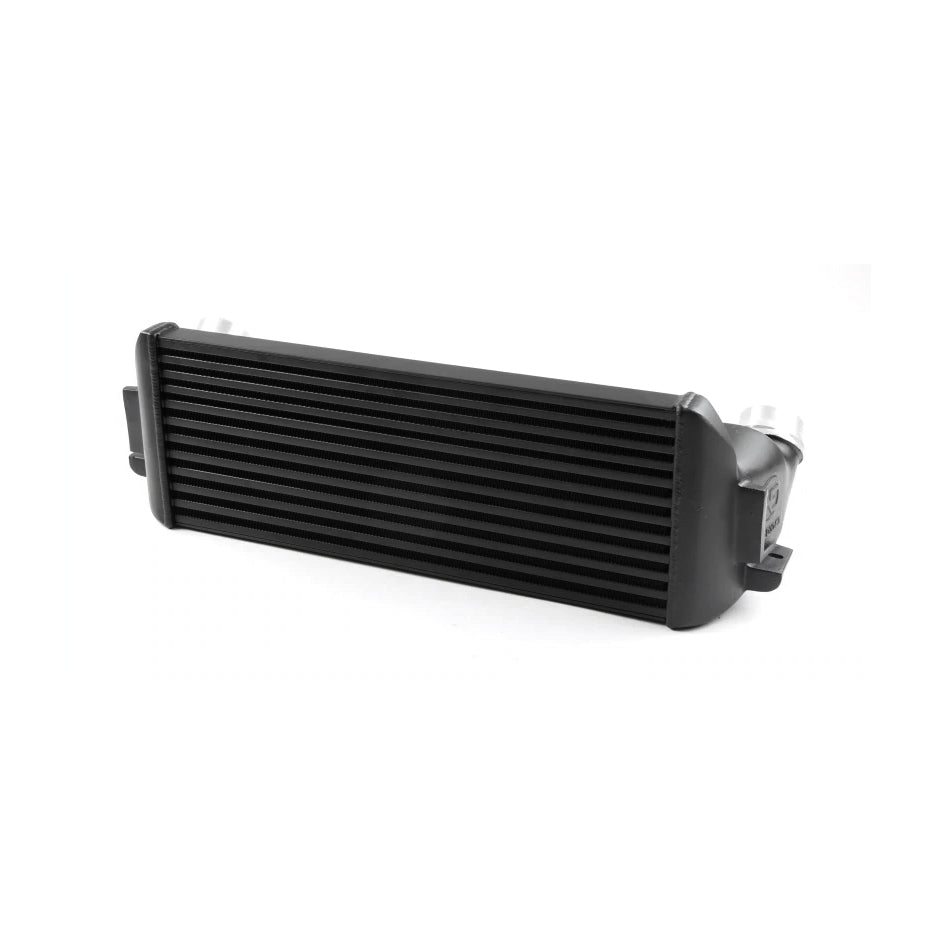

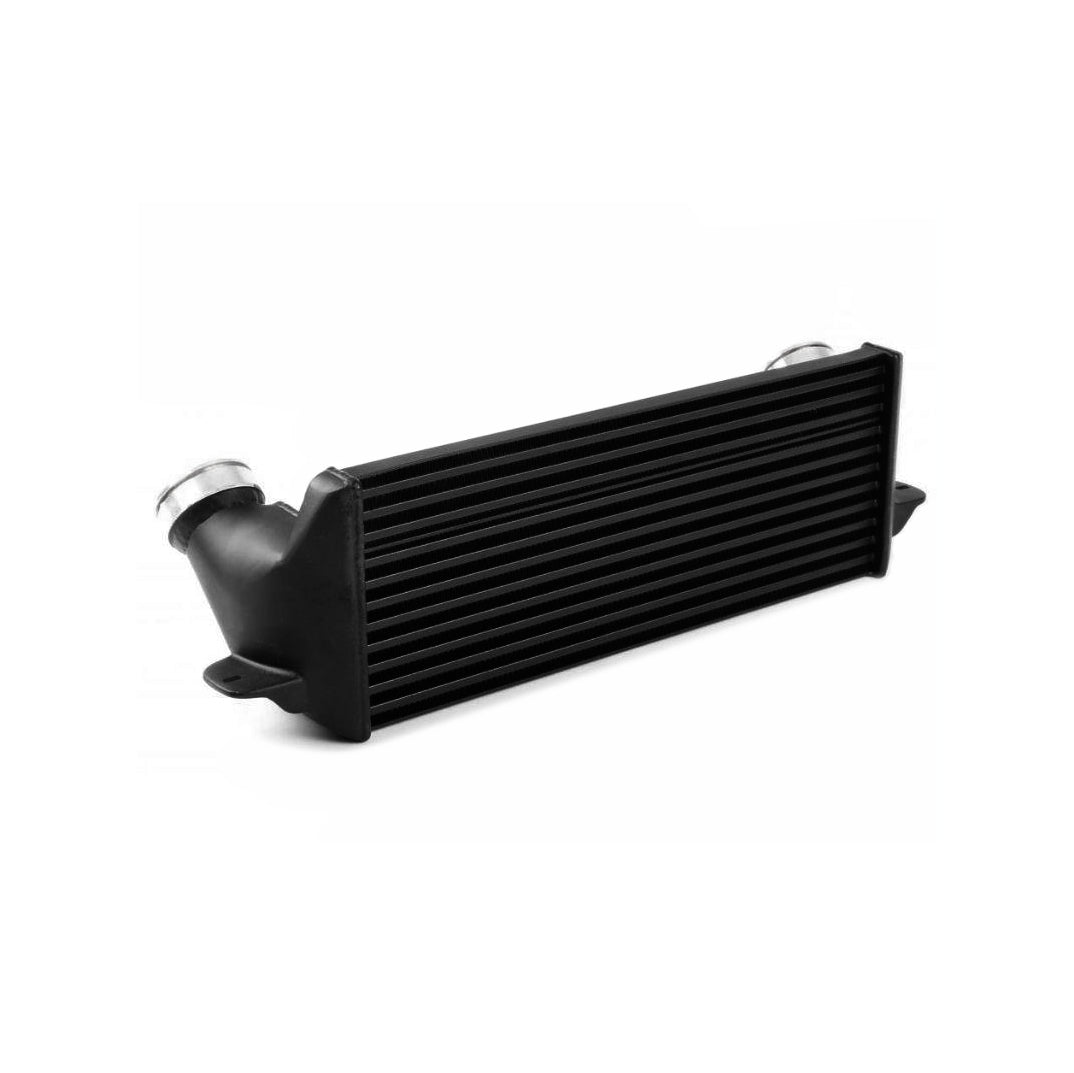

Wagner Tuning Bmw F Chassis Intercooler

OEM 510x130x110mm, 7293cm³ Volume

EVO 1 Performance 520 x 210 x130, 11.752cm³ Volume Approx. 85% bigger surface over OEM IC Weight 8,8kg

EVO 2 Performance 520mm x215mm x145mm /stepped 13.840cm³ Approx. 85% bigger surface and 90% more volume over Stock Intercooler Weight (11,5kg)

EVO 1 Competition 520 x 210 x130, 11.752cm³ Volume Weight 6,6kg

EVO 2 Competition 520mm x215mm x145mm /stepped 13.840cm weight 8,6kg

EVO II does not fit the M235i Convertible. It fits the M235i coupe without any issues.

EVO 1 Competition

Stepped Competition Intercooler Core. Size 520 x 210 x130, 11.752cm? Volume (OEM 510x130x110mm, 7293cm³ Volume). Approx. 85% bigger surface over OEM IC.
CAD / FEM optimized Aluminum Cast End Tanks. Plug & Play Installation using the stock plumbing, no cutting or bumper removal required. Weight 6,6kg

The BMW EVO I Competition Intercooler Kit from Wagner Tuning fits plug and play to:

• BMW 114i F20 / F21 75KW/102PS (2012+)
• BMW 116i F20 / F21 100KW/136PS (2011+)
• BMW 118i F20 / F21 125KW/170PS (2011+)
• BMW 125i F20 / F21 160KW/218PS (2012+)
• BMW M135i F20 / F21 235KW/320PS (2011+)
• BMW 114d F20 / F21 70KW/95PS (2012+)
• BMW 116d F20 / F21 85KW/116PS (2011+)
• BMW 118d F20 / F21 105KW/143PS (2011+)
• BMW 120d F20 / F21 135KW/184PS (2011+)
• BMW 125d F20 / F21 160KW/218PS (2012+)

• BMW 220i F22 / F23 135KW/184PS (2014+)
• BMW 228i F22 / F23 180KW/245PS (2014+)
• BMW M235i F22/F23 240KW/326PS (2014+)
• BMW 218d F22 / F23 103KW/143PS (2014+)
• BMW 220d F22 / F23 135KW/184PS (2014+)
• BMW 225d F22 / F23 160KW/218PS (2014+)

BMW M2 F87 (2016+)

• BMW 316i F30 / F31 / F34 100KW/136PS (2011+)
• BMW 320i F30 / F31 / F34 135KW/184PS (2011+)
• BMW 328i(x) F30 / F31 / F34 180KW/245PS (2011+)
• BMW 335i(x) F30 / F31 / F34 235KW/320PS (2011+)
• BMW 316d F30 / F31 / F34 85KW/116PS (2012+)
• BMW 318d F30 / F31 / F34 105KW/143PS (2012+)
• BMW 320d F30 / F31 / F34 135KW/184PS (2011+)
• BMW 325d F30 / F31 / F34 160KW/218PS (2013+)
• BMW 330d F30 / F31 / F34 190KW/258PS (2012+)
• BMW 335d F30 / F31 / F34 230KW/313PS (2013+)

• BMW 420i F32 / F33 135KW/184PS (2013+)
• BMW 428i F32 / F33 180KW/245PS (2013+)
• BMW 435i F32 / F33 225KW/306PS (2013+)
• BMW 420d F32 / F33 135KW/184PS (2013+)
• BMW 425d F32 / F33 160KW/218PS (2014+)
• BMW 430d F32 / F33 190KW/258PS (2013+)
• BMW 435d F32 / F33 230KW/313PS (2013+)

Packing List:
1 Intercooler
1 Mounting material
1 Installation instruction

Limited 2 year warranty to original purchaser.
THIS ITEM CAN ONLY BE USED IN A COMPETITION RACING VEHICLE THAT IS NOT DRIVEN ON PUBLIC ROADS, UNDER CALIFORNIA STATE LAW IT IS NOT LEGAL FOR USE IN ANY OTHER MOTOR VEHICLE

EVO 2 Competition

The high-performance intercooler has the following dimensions (520mm x215mm x145mm /stepped 13.840cm³ / Stock IC 510mm x130mm x110mm, 7.293cm³)
Approx. 85% bigger surface and 90% more volume over Stock Intercooler. The competition core provides excellent cooling properties and weight is also very low (8,6kg).
The end tanks of the intercooler are made of cast aluminum and have been optimized with the help of flow analysis in the CAD system. Plug & Play Installation using the stock plumming, no cutting or bumper removal required.

The BMW EVO II Competition Intercooler Kit from Wagner Tuning fits plug and play to:

BMW 114i F20 / F21 75KW/102PS (2012+)
BMW 116i F20 / F21 100KW/136PS (2011+)
BMW 118i F20 / F21 125KW/170PS (2011+)
BMW 125i F20 / F21 160KW/218PS (2012+)
BMW M135i F20 / F21 235KW/320PS (2011+)
BMW 114d F20 / F21 70KW/95PS (2012+)
BMW 116d F20 / F21 85KW/116PS (2011+)
BMW 118d F20 / F21 105KW/143PS (2011+)
BMW 120d F20 / F21 135KW/184PS (2011+)
BMW 125d F20 / F21 160KW/218PS (2012+)

BMW 220i F22 / F23 135KW/184PS (2014+)
BMW 228i F22 / F23 180KW/245PS (2014+)
BMW M235i F22/F23 240KW/326PS (2014+)
BMW 218d F22 / F23 103KW/143PS (2014+)
BMW 220d F22 / F23 135KW/184PS (2014+)
BMW 225d F22 / F23 160KW/218PS (2014+)

BMW M2 F87 (2016+)

BMW 316i F30 / F31 / F34 100KW/136PS (2011+)
BMW 320i F30 / F31 / F34 135KW/184PS (2011+)
BMW 328i(x) F30 / F31 / F34 180KW/245PS (2011+)
BMW 335i(x) F30 / F31 / F34 235KW/320PS (2011+)
BMW 316d F30 / F31 / F34 85KW/116PS (2012+)
BMW 318d F30 / F31 / F34 105KW/143PS (2012+)
BMW 320d F30 / F31 / F34 135KW/184PS (2011+)
BMW 325d F30 / F31 / F34 160KW/218PS (2013+)
BMW 330d F30 / F31 / F34 190KW/258PS (2012+)
BMW 335d F30 / F31 / F34 230KW/313PS (2013+)

BMW 420i F32 / F33 135KW/184PS (2013+)
BMW 428i F32 / F33 180KW/245PS (2013+)
BMW 435i F32 / F33 225KW/306PS (2013+)
BMW 420d F32 / F33 135KW/184PS (2013+)
BMW 425d F32 / F33 160KW/218PS (2014+)
BMW 430d F32 / F33 190KW/258PS (2013+)
BMW 435d F32 / F33 230KW/313PS (2013+)

Packing List:
1 Intercooler
1 Mounting material
1 Installation instruction
Limited 2 year warranty to original purchaser.
THIS ITEM CAN ONLY BE USED IN A COMPETITION RACING VEHICLE THAT IS NOT DRIVEN ON PUBLIC ROADS, UNDER CALIFORNIA STATE LAW IT IS NOT LEGAL FOR USE IN ANY OTHER MOTOR VEHICLE
