KW Variant 4The KW Variant 4 was developed exclusively for supercars, sports cars and performance oriented sedans. With coilover struts made from stainless steel or aluminum, depending on the vehicle design, you give your super-sports car the necessary equipment to further increase the driving dynamics in everyday life. The triple-adjustable high-performance dampers combine leading race technology to allow the independent adjustment of the rebound and the low-speed and high-speed compression damping.

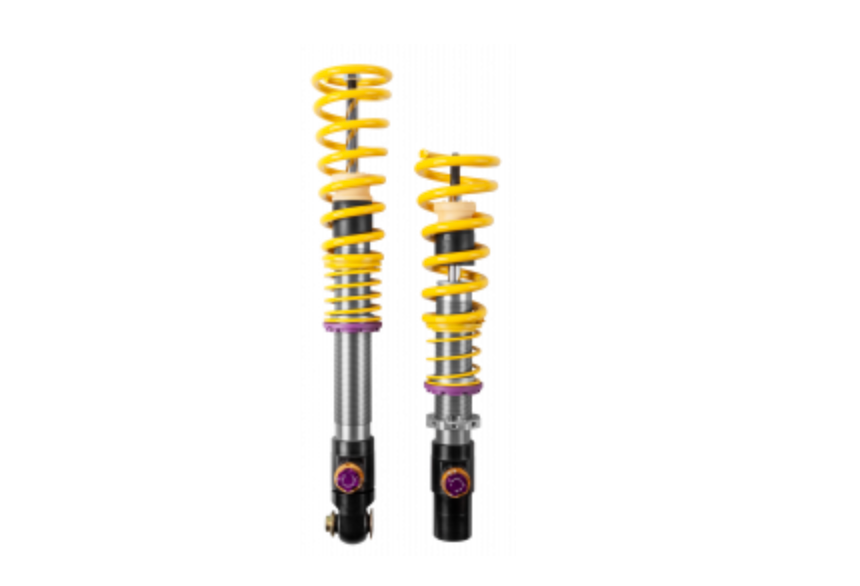

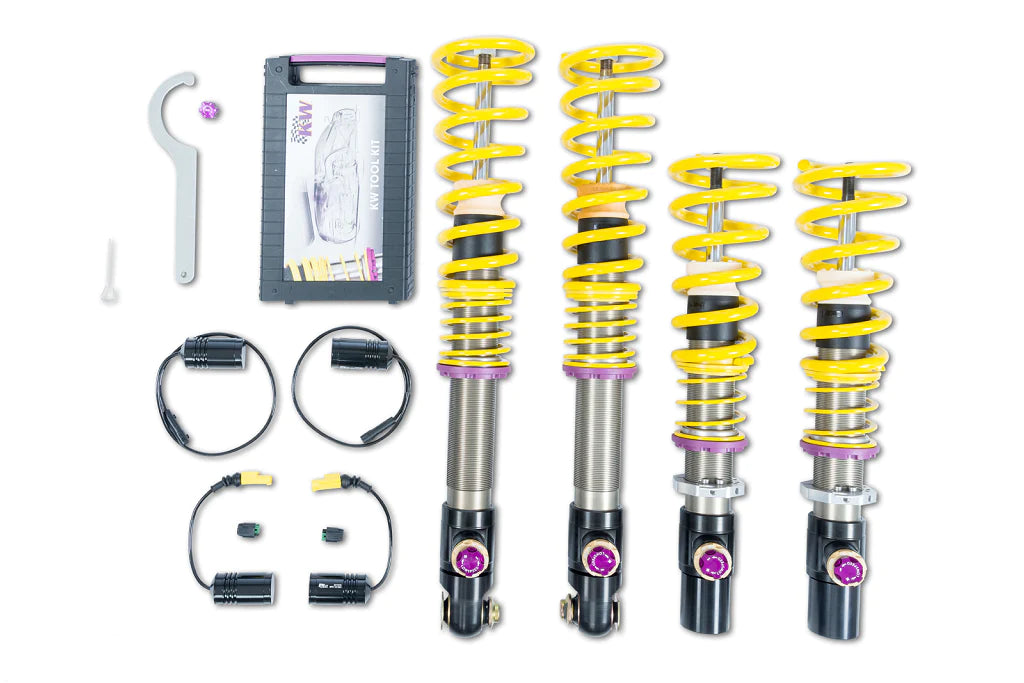

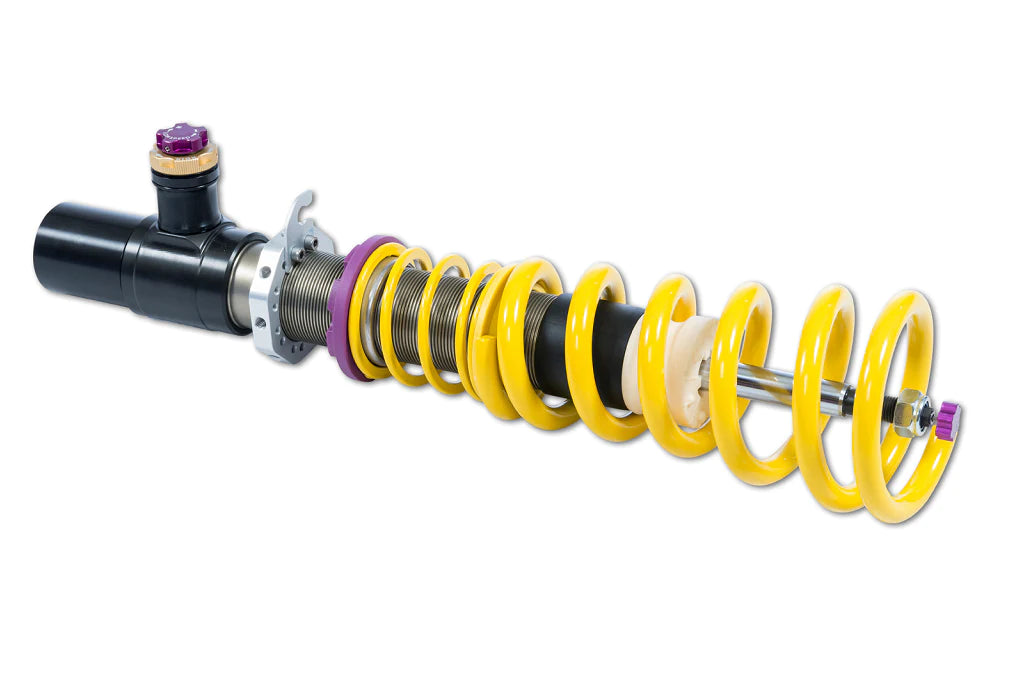

KW variant 4 coilover 2018+ BMW M5 (F90) without delete modules
Lowering
Front Lowering:
0.6" to 1.2"
Rear Lowering:
0.4" to 1.2"
Notes
01: Front and rear height adjustable by threaded shock bodies
37: Vehicles equipped with electronic damper control: Electronic damper control needs to be disabled. Disable modules available through KW. Please check KW accessories list.
411: Variant 4 struts / dampers made of aluminum or kit is a combination of aluminum and stainless steel per axle.

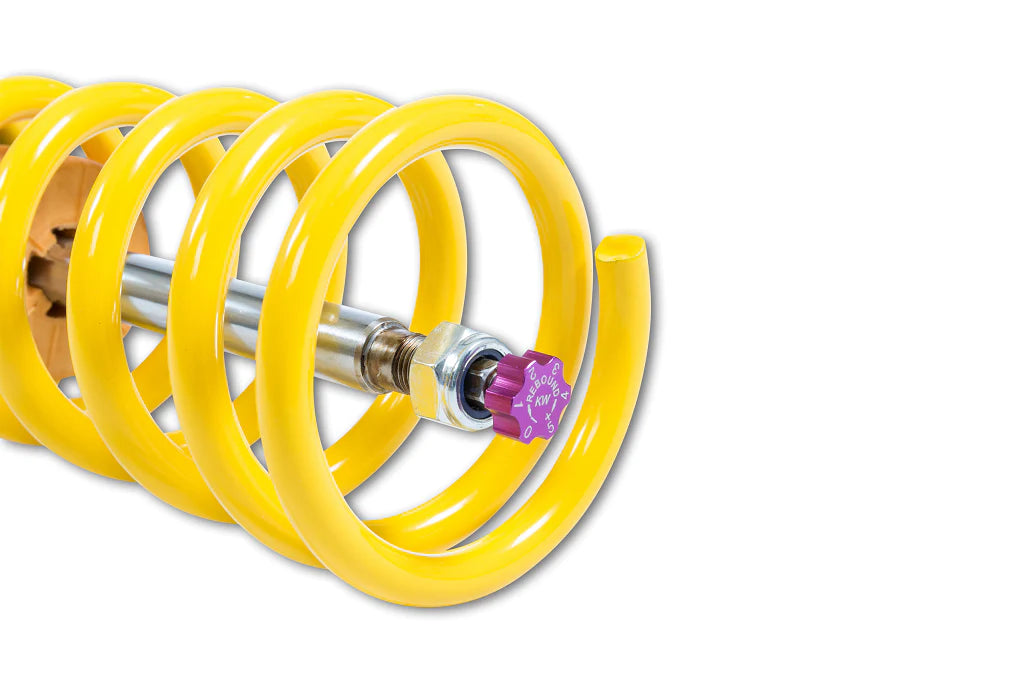

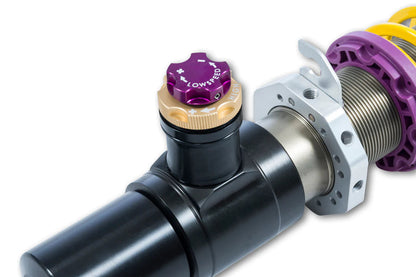

67: Valving is adjusted by adjustment knobs, rebound is only adjustable if the top of the piston rod is accessible. This will depend on the design of the vehicle.
The images shown are for illustration purposes only and may not be an exact
representation of the product.
