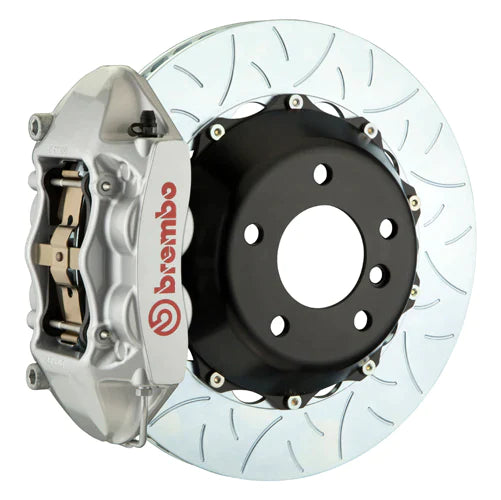

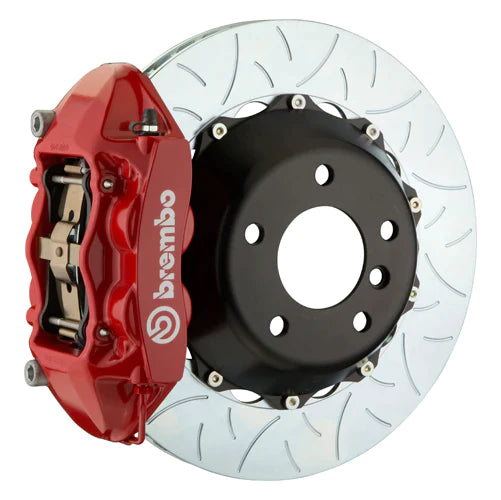

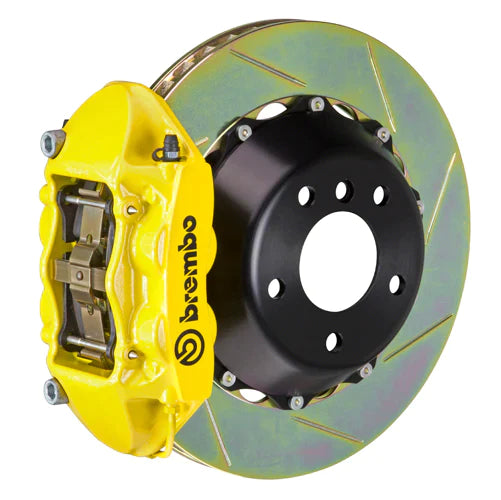

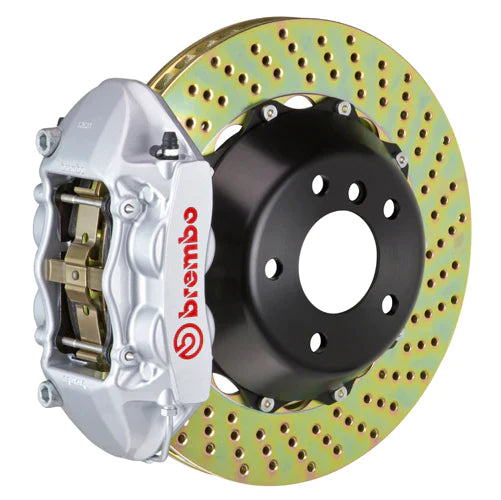

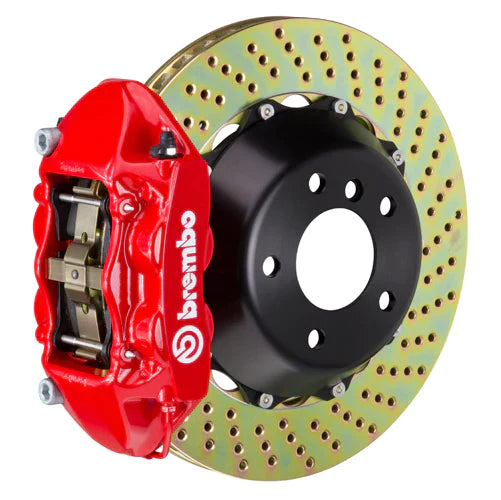

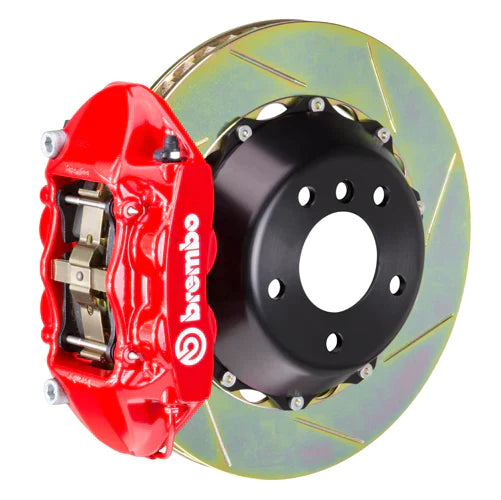

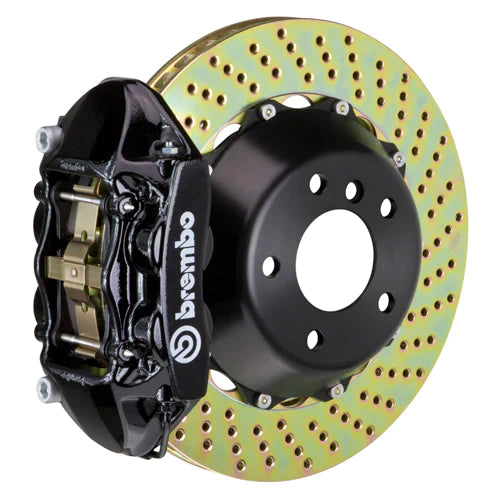

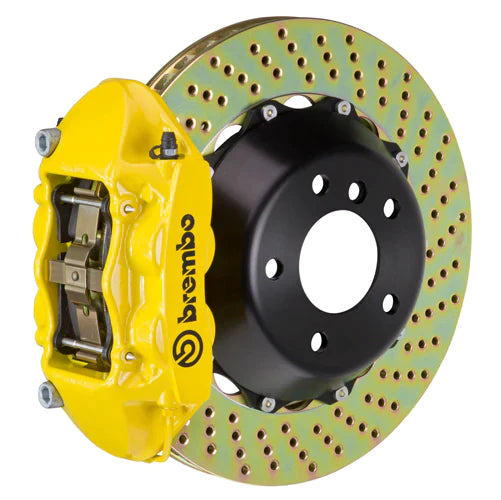

Brembo F8X M2 / M3 / M4 GT Big Brake Kit - 345x28mm 2-Piece Rear

Product Description:

• (R) 4-Piston Cast Monobloc Calipers
• 345x28mm (13.6'') 2-Piece Discs
• Complete Axle Set
• Pre-Assembled
• All Necessary Hardware Included

CALIPER

• Body: Cast Monobloc Radial Mount
• Piston Configuration: 4-Piston
• Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot

DISC

• Type: Cross Drilled, Type 1 Slotted, or Type 3 Slotted
• Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
• Diameter: 345mm
• Width: 28mm
• Air Gap: 16mm
• Annulus: 54mm
• Construction: 2-Piece Disc Assembly
• Vane Design: Vented Curved 48 Vane
• Disc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring

INCLUDED HARDWARE

• Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
• Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation

FRICTION MATERIAL

• Pad Compound: Brembo High Performance FM1000
• Pad Volume / Surface Area: 107.3 | 95.4

WHEEL FITMENT

• How to Measure Wheels for Required Clearance
• Brake Profile Cross Section

Images are for representational purposes only. Actual product may vary.
