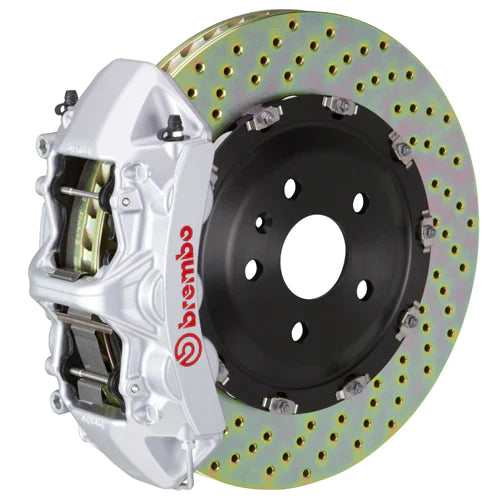

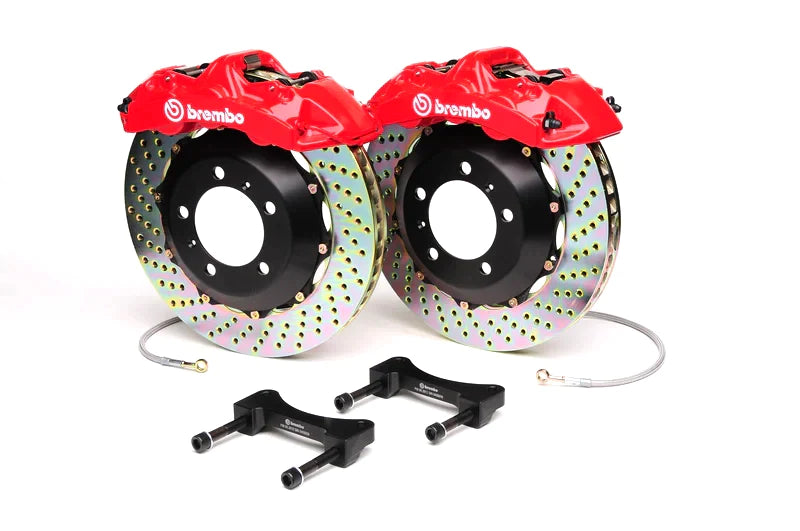

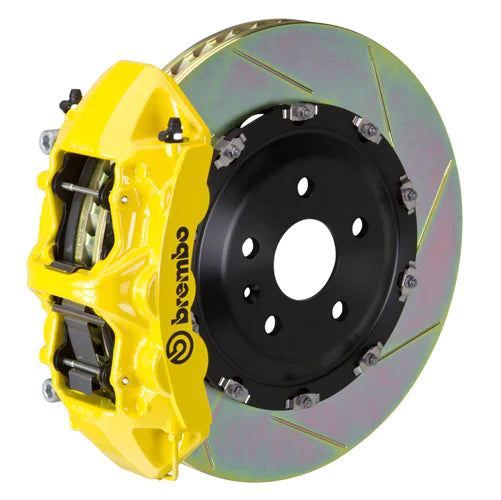

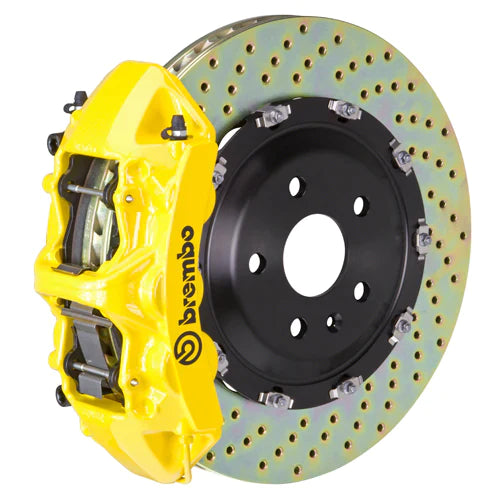

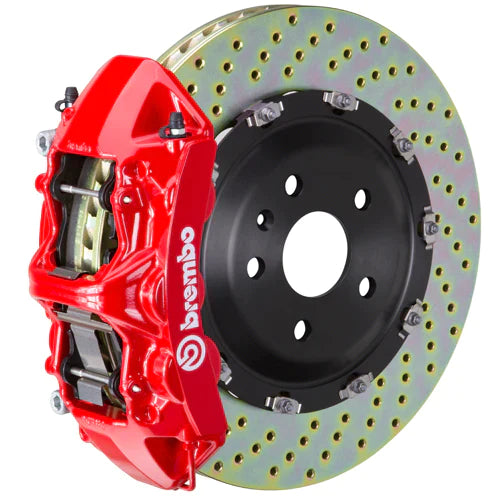

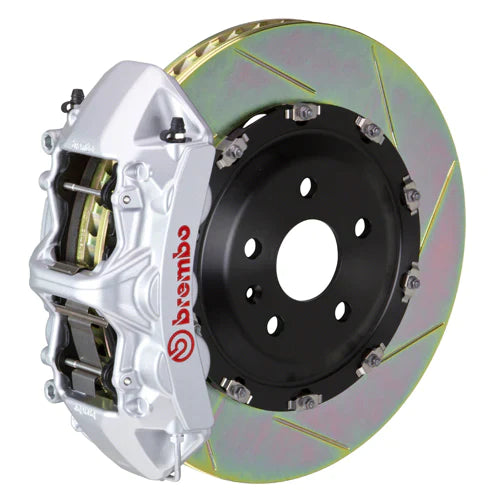

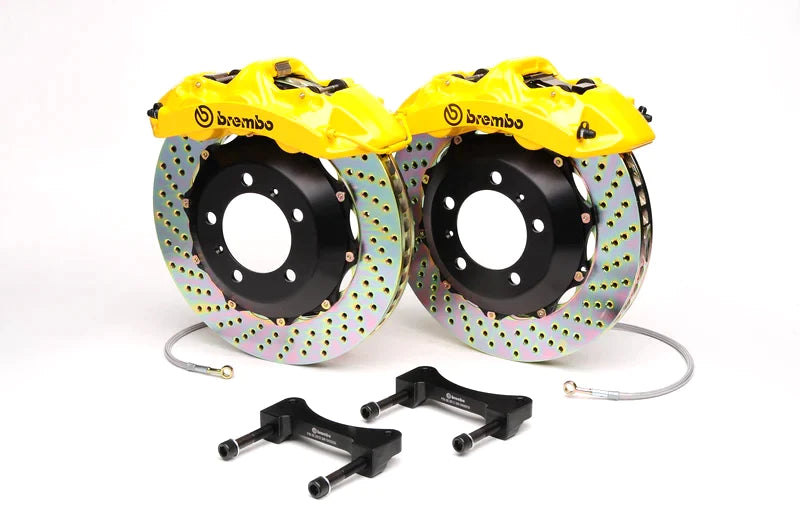

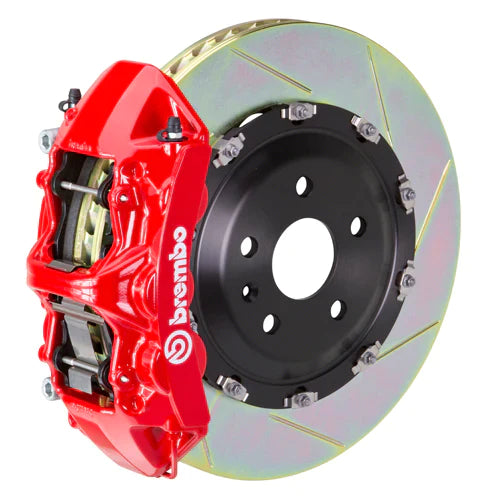

Brembo E9X M3 / E82 1M GT Big Brake Kit - 365x34mm 2-Piece Front

Product Description:

• (F) 6-Piston Cast Monobloc Calipers
• 365x34mm (14.4") 2-Piece Discs
• Complete Front Axle Set
• Pre-Assembled
• All Necessary Hardware Included

CALIPER

• Body: Cast Monobloc Radial Mount
• Piston Configuration: 6-Piston
• Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot

DISC

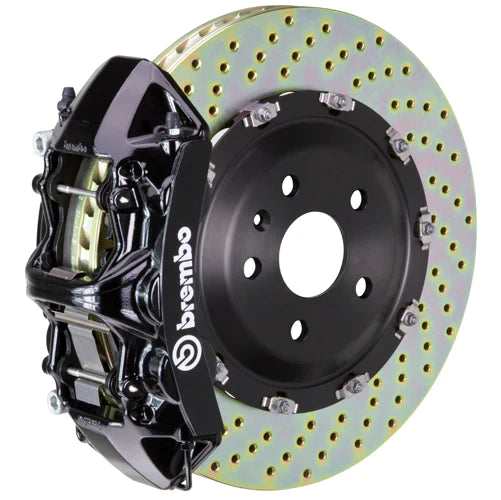

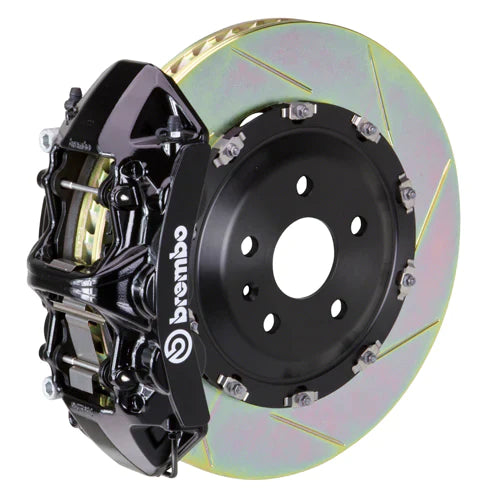

• Type: Cross Drilled or Slotted
• Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
• Diameter: 365mm
• Width: 34mm
• Air Gap: 14mm
• Annulus: 62mm
• Construction: 2-Piece Disc Assembly
• Vane Design: Vented Curved 48 Vane
• Disc To Hat Mounting System: Floating H-Bobbin with Anti Rattle Spring

FRICTION MATERIAL

• Brembo High Performance FM1000
• Pad Volume / Surface Area: 107.3 | 95.4

INCLUDED HARDWARE

• Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
• Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation

WHEEL FITMENT

• How to Measure Wheels for Required Clearance
• Brake Profile Cross Section

Images are for representational purposes only. Actual product may vary.
